Key Features
-
500 lb (226.8 kg) lift capacity with hydraulic lift beam
-

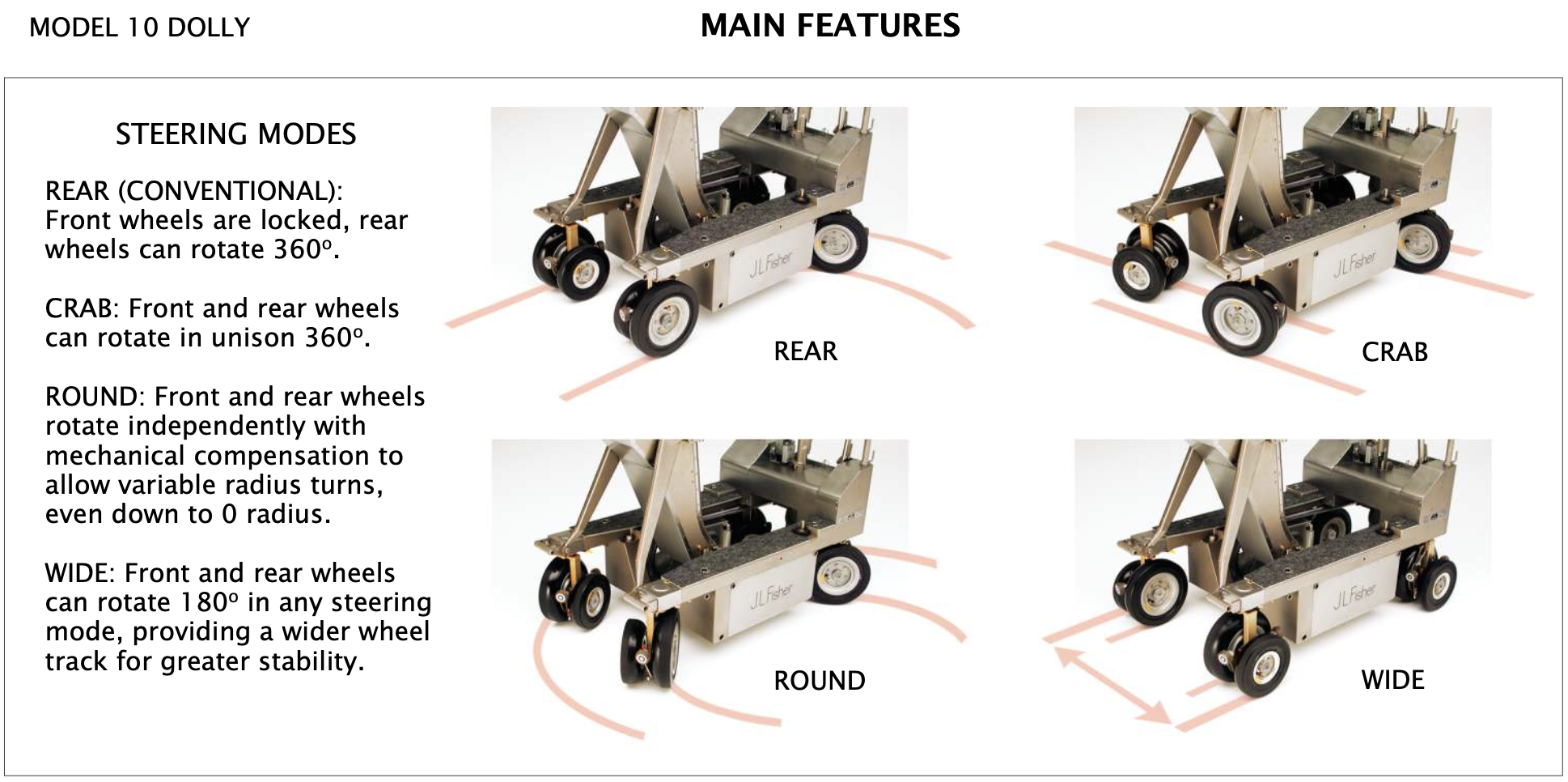

Three steering modes: crab, conventional, and round steering for tight radius turns
-
Compact but sturdy design, ideal for studio or location use
-
Full hydraulic system: self‑centered controls, self‑bleeding, and manual hydraulic pump for backup

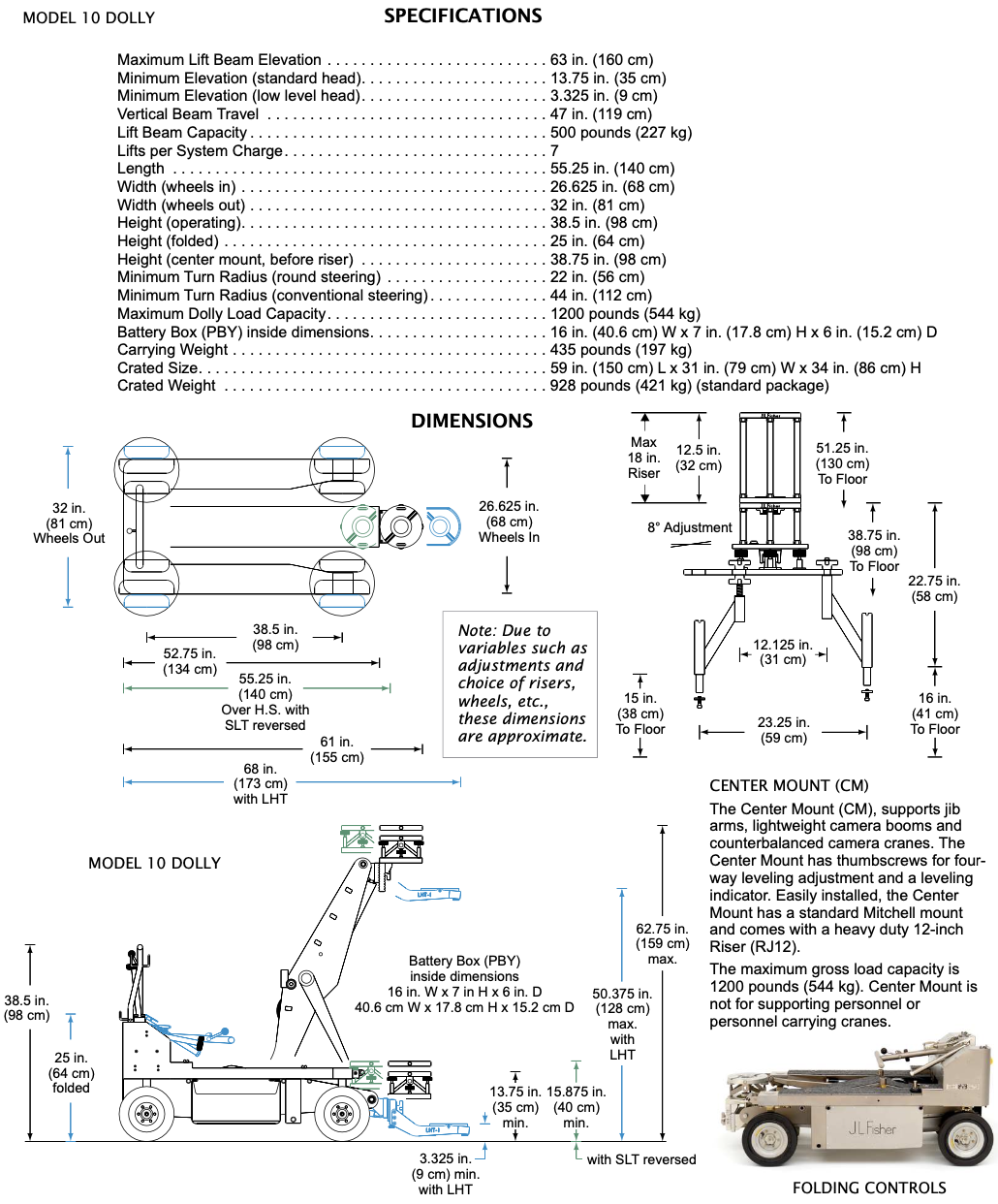

Technical Specifications Table
| Specification |
Metric / Imperial |
| Max lift beam elevation (Standard Level Head) |
159.1 cm / 62.625 in |
| Min lift beam elevation (Standard / Low Level Head) |
34.9 cm / 13.75 in : 7.94 cm / 3.125 in |
| Vertical beam travel |
119.1 cm / 46.875 in |
| Lift capacity |
226.8 kg / 500 lb |
| Dolly length |
140.97 cm / 55.5 in |
| Width |
67.31 cm / 26.5 in |
| Operating height |
98.11 cm / 38.625 in |
| Folded height |
63.5 cm / 25 in |
| Min turn radius (round / conventional) |
55.9 cm / 22 in ; 111.8 cm / 44 in |
| Operational weight |
190.5 kg / 420 lb |
| Max dolly load capacity |
544 kg / 1200 lb |
| Lifts per system charge |
7 |

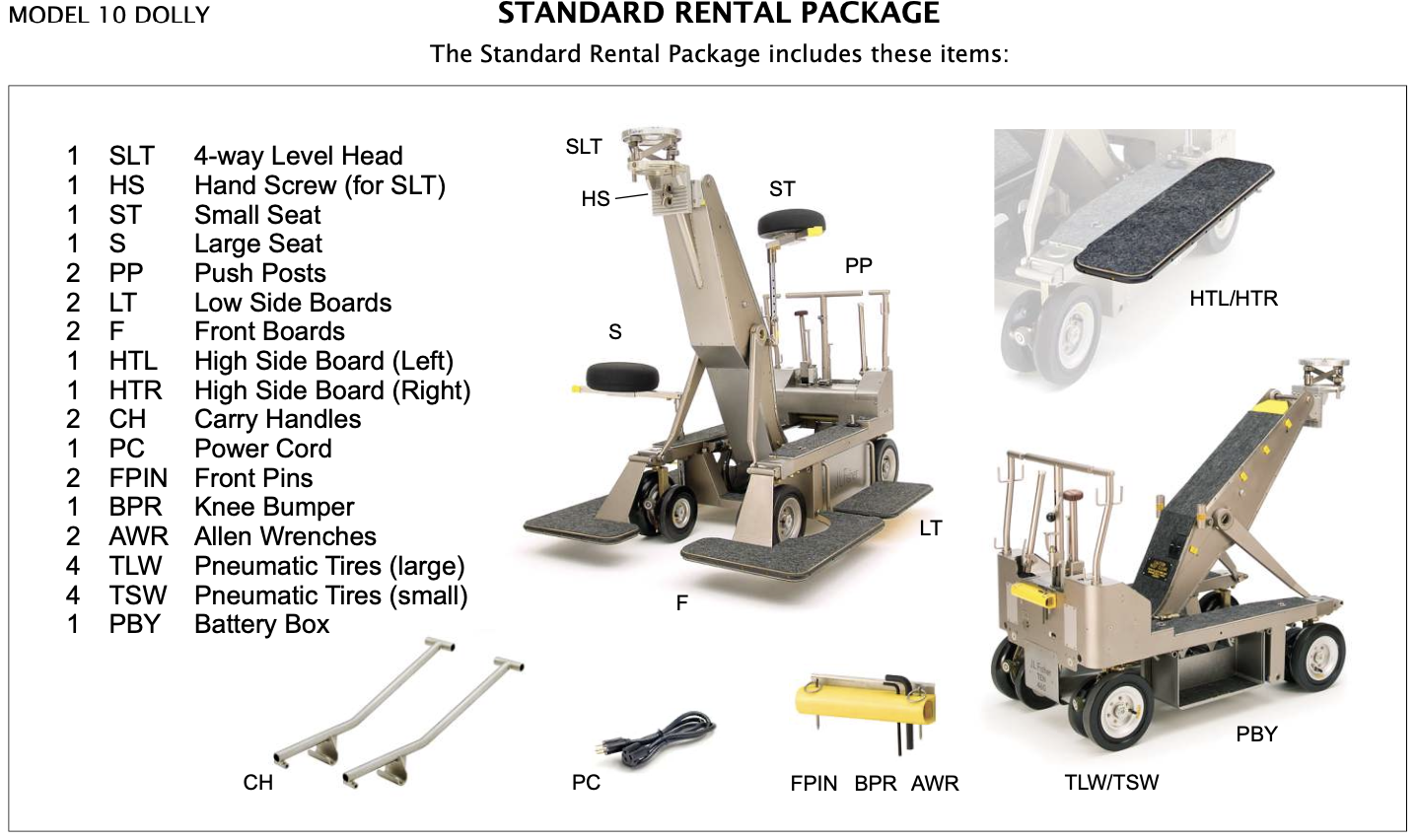

Accessories
Dolly Package with Full Accessories Includes
* Model 10
* 45 Degree Seat Offset High
* Multi-Position Level Head Mitchell Mount
* 90 Degree Offset Straight
* 100mm Ball Adapter or 150mm or 75mm Ball Adapter
* Diving Boards Right & Left
* 12" Camera Riser
* Front Boards
* 6" Camera Riser
* High Side Boards
* 90 Degree Angle Plate
* Low Side Boards
* 10" Camera Offset
* Front Board Bridge
* 24” Camera Offset
* Standing Platform
* Seats, Large & Small
* Rotating Off Set
Why Rent from San Diego Film Equipment
-
Delivery available
-
Convenient San Diego location (3644 Midway Drive, 92110) with fast, easy rental process
-
10 minutes away from the San Diego International Airport
-
Select your rental period on this page to view current rental rates.
-
Reliable gear and responsive support tailored for professional productions
Frequently Asked Questions
What is a Fisher 10 Dolly used for?
The JL Fisher 10 Dolly is the industry standard hydraulic camera dolly used on feature films, television productions, commercials, music videos, and premium branded content. It allows filmmakers to create smooth, repeatable camera movement while supporting large camera packages and operators.
How much weight can a Fisher 10 Dolly support?
The Fisher 10 features a 500 lb hydraulic lift capacity and a maximum load capacity of approximately 1,200 pounds, allowing it to support large cinema cameras, operators, assistants, and extensive accessory packages.
Does the Fisher 10 Dolly work on track?
Yes. The Fisher 10 is commonly used on straight and curved dolly track to achieve precise, repeatable camera movement. It can also operate on smooth studio floors using its pneumatic wheels.
Can the Fisher 10 Dolly be used without track?
Absolutely. The Fisher 10 performs exceptionally well on level stages and studio floors without track, making it a versatile option for many productions.
Do I need a Dolly Grip?
For complex moves and track setups, an experienced Dolly Grip is strongly recommended to maximize safety and achieve precise camera movement.
Can the JL Fisher 10 Dolly be used on commercials and feature films?
Yes. The JL Fisher 10 is one of the most widely used camera dollies in the world and is considered the industry standard for commercials, television, and feature film productions.
JL Fisher 10 Dolly vs Other Camera Dollies
JL Fisher 10 vs Doorway Dolly
The Doorway Dolly is lightweight, affordable, and ideal for smaller productions. The Fisher 10 offers hydraulic lift, larger payload capacity, and superior control for premium productions.
JL Fisher 10 vs Hollywood Dolly
The Hollywood Dolly provides a cost-effective alternative for productions that need track-based movement. The Fisher 10 delivers greater versatility, hydraulic lift capability, and a more refined operating experience.
JL Fisher 10 vs Dana Dolly
The Dana Dolly excels at lightweight slider-style moves. The Fisher 10 is designed for full-sized cinema productions requiring seated operators, larger camera packages, and complex movement.
Common Use Cases
-
Feature films
-
Television series
-
Commercial productions
-
Agency campaigns
-
Music videos
-
Narrative productions
-
Studio productions
-
Interview tracking shots
-
Automotive commercials
-
Premium branded content
Expert Advice
Our recommendation: if your production budget supports it, choose the JL Fisher 10.
The Fisher 10 remains the industry benchmark for professional camera movement. It provides smooth hydraulic lift, exceptional stability, and an extensive accessory package that adapts to virtually any production environment.
For commercials and narrative productions, pair the Fisher with track, wedges, and an experienced Dolly Grip for optimal results.
Production Examples
Commercial Production Package
Studio Package
Frequently Rented Together
Why Rent the JL Fisher 10 Dolly?
The JL Fisher 10 Dolly has earned its reputation as the gold standard of camera movement. Used extensively throughout the film and television industry, it combines smooth hydraulic lift, exceptional stability, track compatibility, and a robust accessory ecosystem to support virtually any camera package.
Whether you're filming a commercial campaign, feature film, television series, music video, or premium branded content, the Fisher 10 delivers the precision, reliability, and professional performance demanded by today's productions.
Need help building the right Fisher 10 package? Contact San Diego Film Equipment and our team can recommend the ideal combination of track, heads, cameras, lenses, monitoring, and accessories for your specific production.
